A heavy duty decorative lattice panel. Solid construction with pressure treated timber.

Please note: Measurements are shoulder heights x width + 200mm for top of Arch measurements.

  • Fillet to be fitted when used with Concrete Gravel board
  • Fencing Clips
  • Timber Post Compatible
  • Concrete Post Compatible
  • Slotted Timber Post Compatible

Panel Sizes:

  • 1.8m x 1.8m  (Product code: HDL13)
  • 1.8m x 1.5m  (Product code: HDL12)

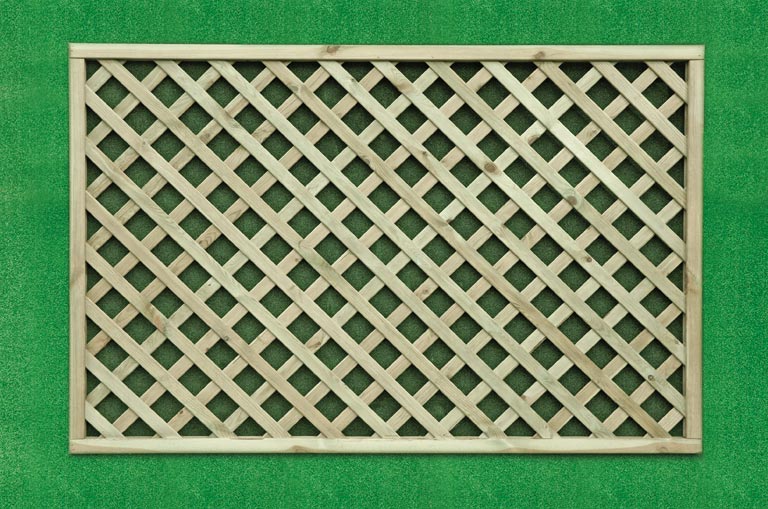

  • 1.8m x 1.2m  (Product code: HDL11)

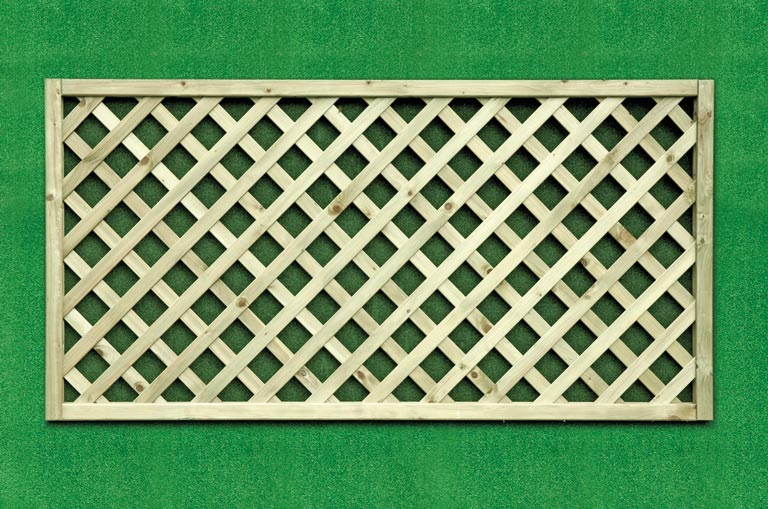

  • 1.8m x 90cm  (Product code: HDL10)

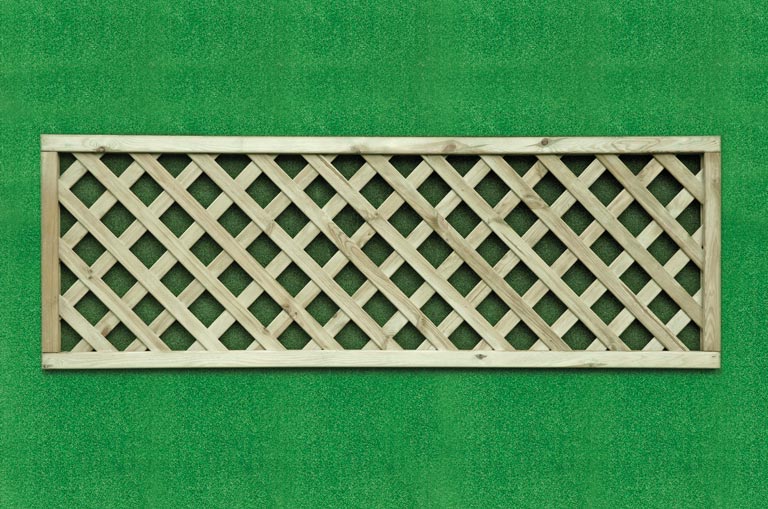

  • 1.8m x 600mm  (Product code: HDL9)

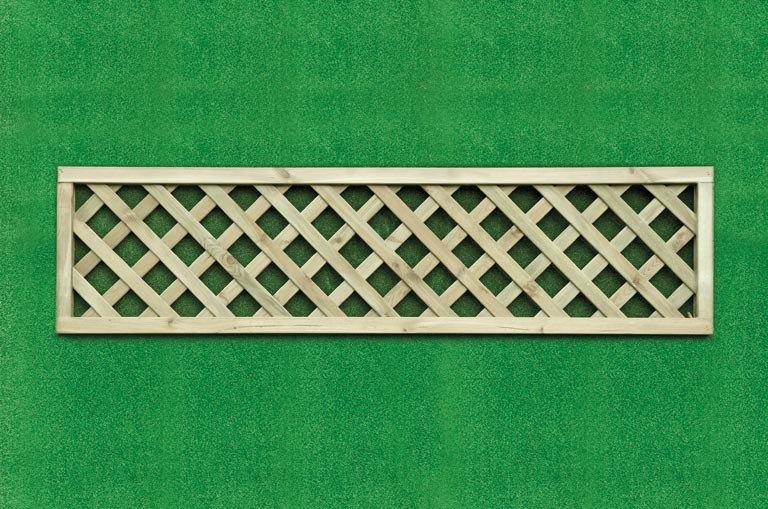

  • 1.8m x 450mm  (Product code: HDL8)

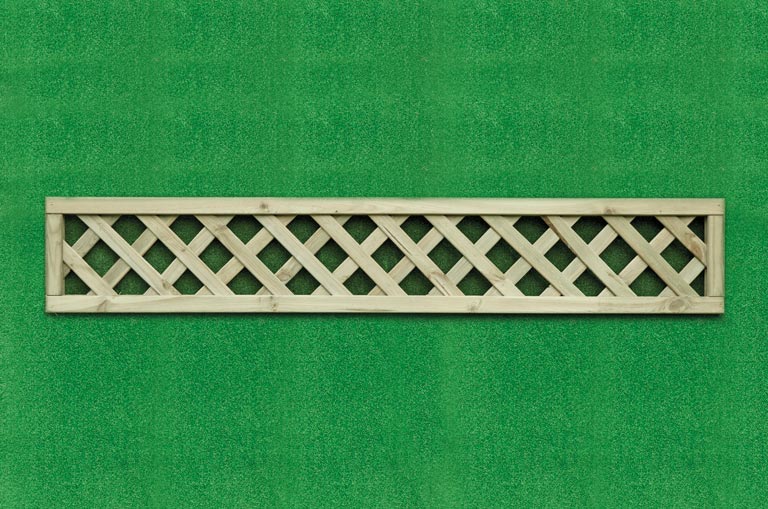

  • 1.8m x 300mm  (Product code: HDL7)

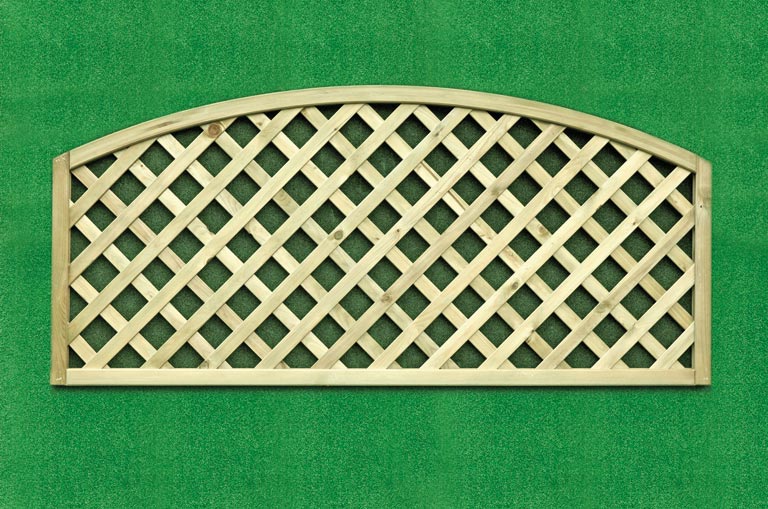

  • 1.8m x 600mm  (Product code: Convex HDL5)
  • 1.8m x 450mm  (Product code: Convex HDL3)

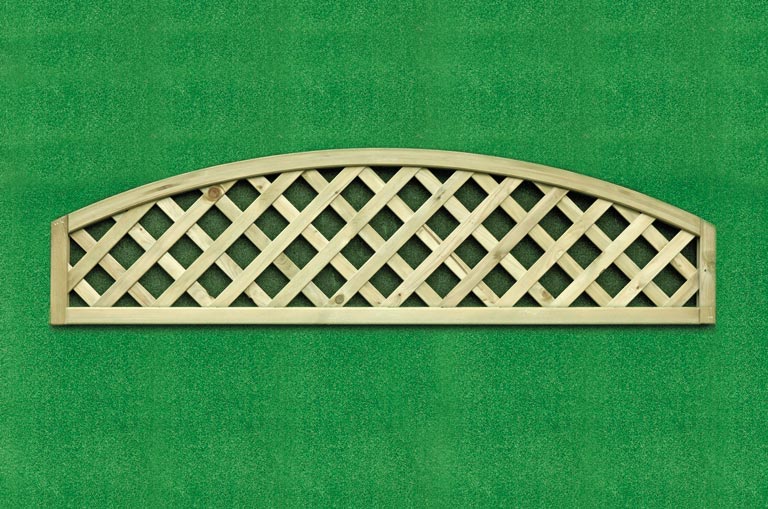

  • 1.8m x 300mm  (Product code: Convex HDL1)
Call us now on 01792 896 540

Specifications

  • Panel Profile: Rectangle

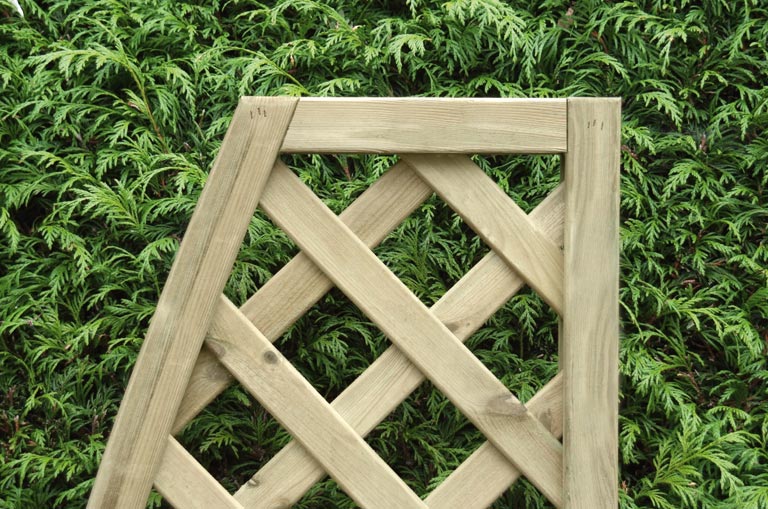

  • Lattice Top: 12mm x 30mm, Planned and Rounded Edges, Inside Gap = 50mm
  • Lattice Framing: 45mm x 45mm
  • Lattice Width: 40mm
  • Lattice Thickness: 8mm
  • Lattice Gaps from Inside Edges: 70mm
Wood Treatment

Our timber is treated using a state-of-the-art preservative system that guarantees an extended service life from the timber you buy. TANALISED® E is the best that there is. It’s a modern high-precision process that gives long-term protection against fungal decay and insect attack.

Using vacuum pressure technology, the system protects wood with TANALITH® E, a preservative that makes best use of the latest copper triazole technology. It contains copper from recycled sources and triazoles that are biodegradable, which means that they don’t persist in the environment. Treated products are perfect for use inside and out and above the ground, in the ground and in contact with water.

Environmental

Timber is an environment-friendly material and we do all we can to supply timber products in a way that adds to that benefit by limiting the environmental footprint of harvesting, processing and delivery. So all our round timber is sourced from well managed forests which means that young saplings are planted as mature trees are felled.

Using locally-grown wood we minimise haulage and we do all we can to make our haulage operation as efficient as we can to keep our carbon ‘footprint’ as small as it can possibly be.

And lastly there’s the preservative, TANALITH® E. It contains copper from recycled sources and triazoles that are biodegradable, which means that they don’t persist in the environment.
